Scales up to 20 FEET
LONG now available - Call for details
All Electronica
Kits include magnetic scales:
Note the "hash
marks" on the readhead and scale.
When installing the scale,
make sure the readhead and scale "hash marks" are both installed on the same
'side' or the display might 'flicker'.
Click
HERE to download "How to Cut Magnetic Scales".
Click
HERE
to download "Cutting Magnetic Scales for a 2 Axis Mill" worksheet.
Click
HERE to download the "Changing Electronica EL400 Scale Read Direction"
document.
Magnetic scale
technology combines the best of optical and inductive technology.
Just like inductive or "ball scales", magnetic scales are impervious
to coolant or liquid, yet are slimmer, and cost half as much!
They're easier to mount, more durable, and on par pricewise with
optical scales. In summary, magnetic scales combine all the
advantages of the other technologies, without retaining the negative
qualities of being higher priced, or difficult to install, that
inductive or "ball scales" suffer from.
If that wasn't
enough, the Electronica bracket kits are the best we've ever seen.
Unlike the competitors bracket kits, Electronica brackets are
individually machined for accuracy, not cast. Our "Library" page
includes a complete parts list and exploded assembly diagram - in
short, no more missing parts or time consuming "how does this
bracket fit together" sessions!
In summary, the
Electronica Magnetic Scale Digital Readout kit is a revolutionary change to
digital readouts as you know them! With the industries lowest profile reader
head, this is a game changer!
Magnetic scales:
Do not contain glass
- much more durable than any other type scale.
Are coolant and dust
proof -
have a full IP-67 rating, meaning they can't get contaminated like glass scales.
Can be easily cut
to the length you need - no more "hanging off" the end of the cross slide -
custom fit to your application!
Easy to mount
- the scale is
surface mounted directly to the table, not offset like other brands require!
Resolution:
EDM kits come
standard with 5 micron (0.0002") resolution magnetic scales
The Electronica EDM package include everything you need - a display head,
mounting arm, power cord, detailed installation manual, a super detailed
operators manual, shields, mounting hardware, brackets, etc. Additionally, all Electronica displays have a USB port on the back, ensuring it won't become
obsolete when a new software update is released.
Stop paying our competitors outrageous prices! Outfit your machine today with
magnetic scales at a DRO PROS price!

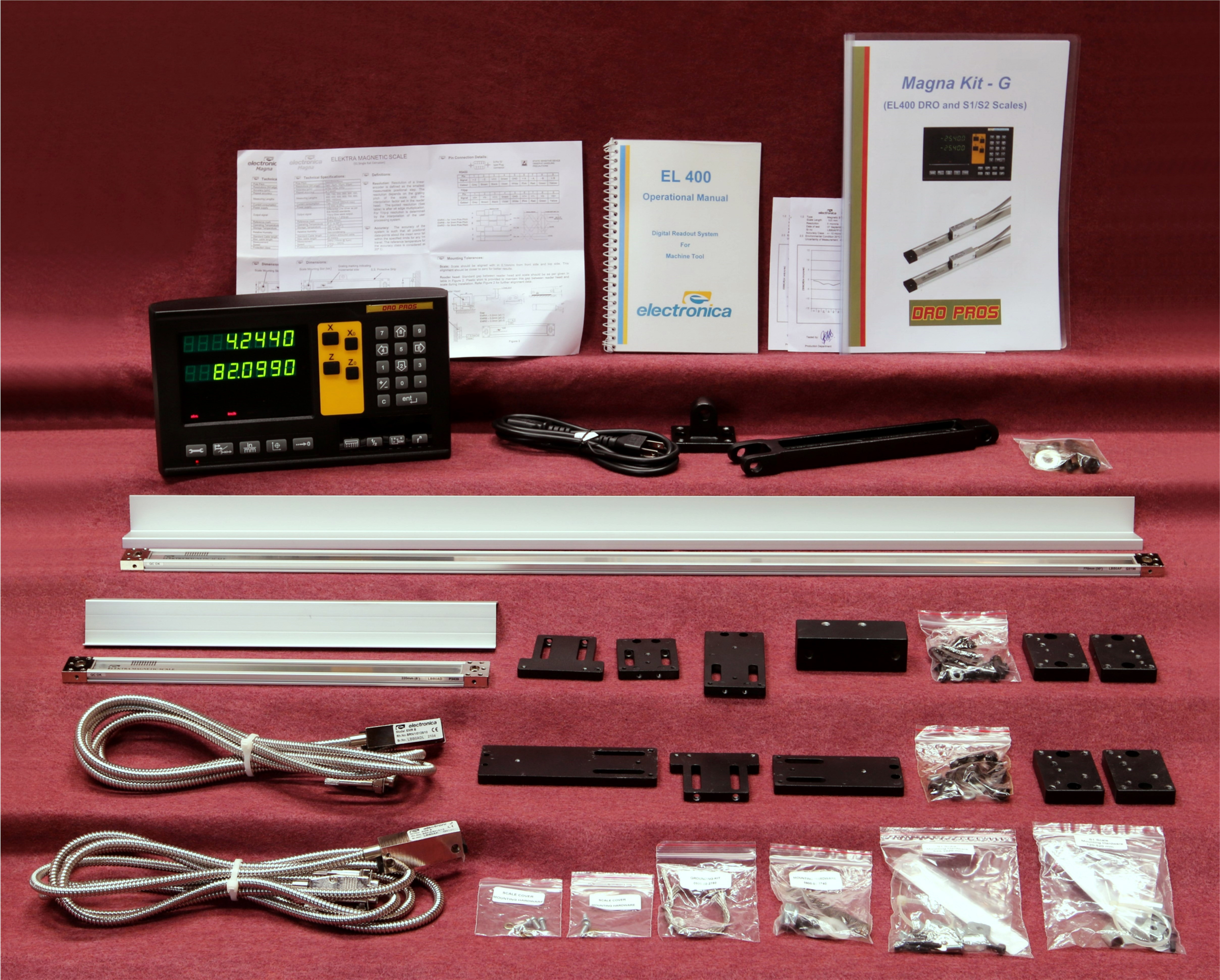

Electronica
Magnetic Scale 2 Axis EDM Kit:
EL400
EDM Kit |
|
NOTE: Items are shown out of their
protective boxes to better illustrate what's included.
Display cover, and installation
instructions included but not shown.
All kits ship in original factory packaging
and boxes.
Magnetic Scales can
be easily cut to length and can't be contaminated!
|
Determining Magnetic Scale Length.
Magnetic scales are named according to the amount of
travel the scales are built to accommodate. This is the
value you should use to match the travel of your
machine. As a sidenote, maximum
travel will be ~ 5/8" longer, and overall length will be
5-1/2" longer than stated scale size. Using a 12" scale
as an example, it is designed to fully accommodate 12"
of travel, it's maximum travel will be 12-5/8", and
overall length will be 17-1/2". |
|
10" x 22"
x 12" |
|
$1,355 |
|
10" x 22" x 12" |
|
Display

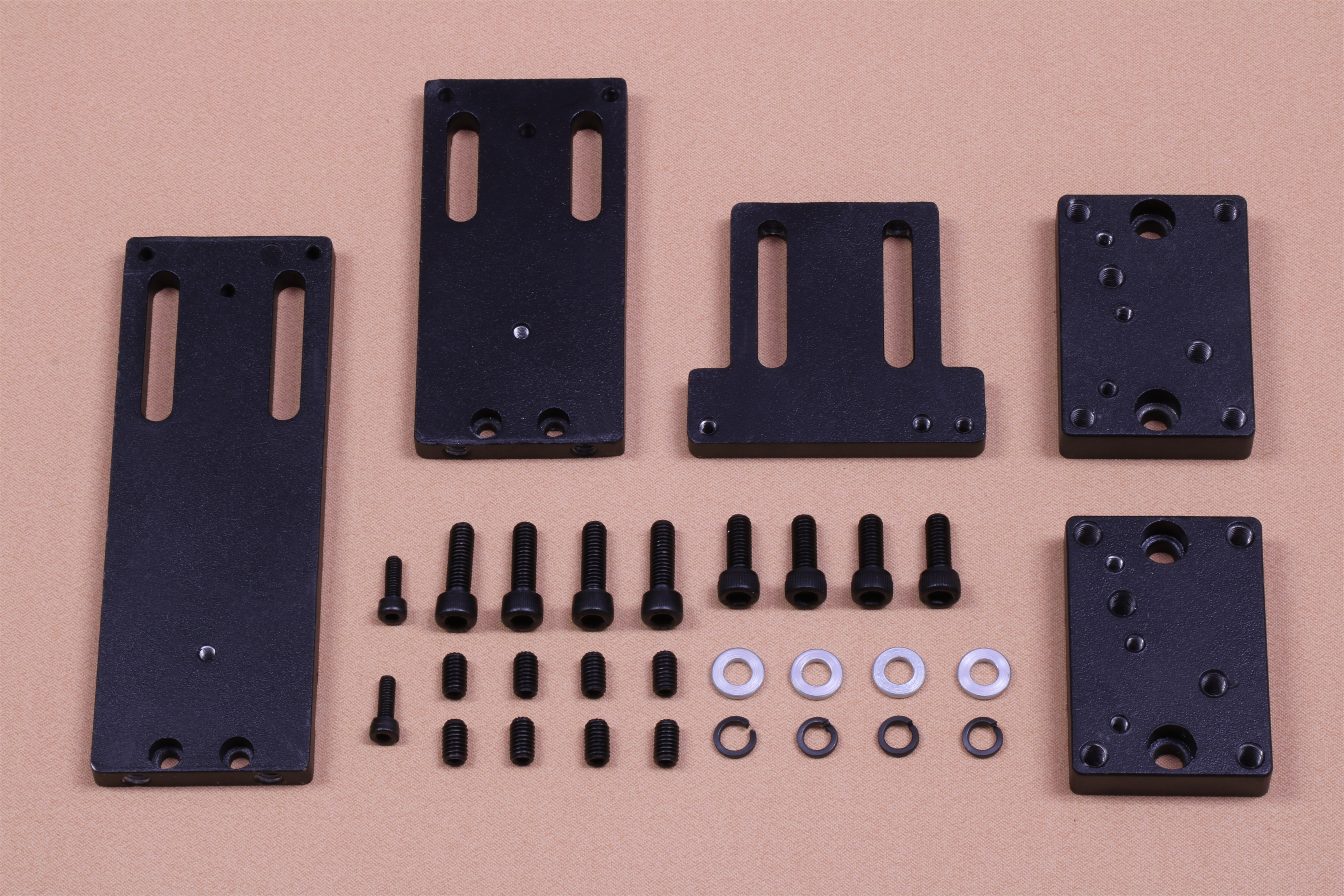

Arm Bracket: |
|
|
X Axis (longitudinal)
Bracket: |
|
|

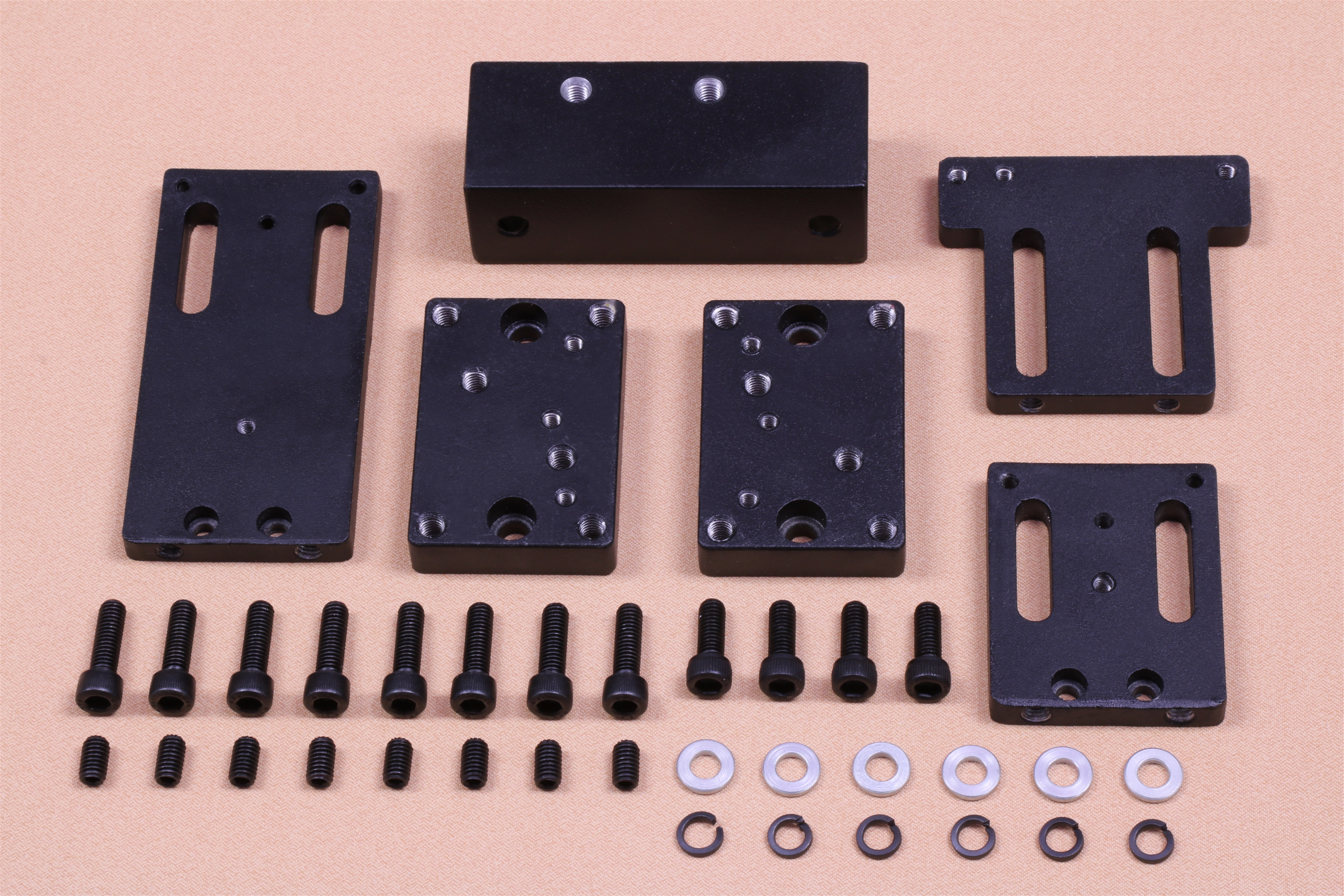

Cross Axis Brackets: |
|
|
Vertical Axis Brackets: |
|
|
Recommended EL400 Documents:
How to Cut Magnetic Scales
Changing EL400 Scale Read Direction |
Electronica
400 "Machine Specific" 3 Axis EDM Display:
- The front display has
"Quick Zero" buttons for the X, Y and Z axis.
- The lower eight function
keys are EDM specific.
- Includes a DB15 Z axis
depth controlling relay output on the back.
The following
drills and taps are helpful when installing Electronica kits:
Scale
Endcaps |
M3 x .5 plug tap
|
Enco Part #510-1218 |
|
|
|
Mounting
the Scales |
M4 x .7 plug tap
|
Enco Part #510-1272 |
|
M4 x .7 bottom tap |
Enco Part #510-1170 |
|
3.30mm drill for
M4 taps |
Enco Part #317-8273 |
|
|
|
Scale & Readhead
Brackets |
M6 x 1.0 plug tap |
Enco Part #510-1299 |
|
M6 x 1.0 bottom
tap |
Enco Part #510-1213 |
|
5.00mm drill for
M6 taps |
Enco Part #317-8286 |
Benefits of Magnetic
Scales
There are currently three
different scale types available for digital readout systems. They are magnetic,
glass, and inductive. Glass scales rely upon an optical encoder and receiver
mounted inside of an aluminum extrusion. If the scale becomes contaminated by
coolant, oil or dust, they are rendered useless.
Inductive scales are impervious to contamination. The disadvantages are they're
bulky, expensive, and difficult to mount.
Magnetic scales combine the best of optical and inductive technology. Magnetic
scales are impervious to coolant, liquid or dust, yet are slimmer than either of
the other two technologies. They're easier to mount, more durable, and can be
broken down into convenient lengths for shipping. The first thing customers
notice with magnetic scales is that the readhead and the scale are completely
separate components. This means mounting magnetic scales is easier than any
other type scale - since the readhead mounts separately from the scale, mounting
is much quicker, and a whole lot easier! Prior to Electronica, magnetic scales
were prohibitively expensive. Today, they are on par pricewise with optical
scales. In summary, magnetic scales hold all the advantages of the other
technologies, without retaining the negative qualities of being higher priced or
difficult to install that inductive scales suffer from.
